Simple Log Service:Collect standard output from an Alibaba Cloud ACK cluster - old version (deploy Logtail in DaemonSet mode)

Crd-AliyunPipelineConfig (recommended)

To create Logtail configurations, simply create the AliyunPipelineConfig custom resources, which will take effect automatically.

1. Log on to the ACK console.

2. On the Clusters page, find the cluster that you want to manage and click its name. In the left-side pane, choose Workloads > Custom Resources.

3. On the Custom Resources page, click the CRDs tab, then click Create from YAML.

4. Modify the parameters in the following YAML example as needed, copy and paste it into the template, then click Create.

   Note

   You can use the Logtail configuration generator to create a target scenario YAML script. This tool helps you quickly complete the configuration and reduces manual operations.

   The example YAML file below captures standard output from Pods labeled with app: ^(.*test.*)$ within the default namespace, using multi-line text mode, and forwards it to a logstore called k8s-stdout, which is automatically created within a project named k8s-log-<YOUR_CLUSTER_ID>. Adjust the parameters in the YAML as needed:

   • project: Log on to the Simple Log Service Console, and identify the project name created by the Logtail you installed, typically in the format k8s-log-<YOUR_CLUSTER_ID>.

   • IncludeK8sLabel: Used to filter the labels of the target pod. For example, app: ^(.*test.*)$ indicates that the label key is app, and it will collect pods with values that include test.

   • Endpoint and Region: For example, ap-southeast-1.log.aliyuncs.com and ap-southeast-1.

   For more information on config in the YAML file, such as supported inputs, outputs, processing plug-in types, and container filtering methods, see PipelineConfig. For a comprehensive list of YAML parameters, see CR parameters.

   apiVersion: telemetry.alibabacloud.com/v1alpha1
   # Create a ClusterAliyunPipelineConfig.
   kind: ClusterAliyunPipelineConfig
   metadata:
     # Specify the name of the resource. The name must be unique in the current Kubernetes cluster. This name is also the name of the Logtail configuration created.
     name: example-k8s-stdout
   spec:
     # Specify the target project.
     project:
       name: k8s-log-<YOUR_CLUSTER_ID>
     # Create a logstore for storing logs.
     logstores:
       - name: k8s-stdout
     # Define the Logtail configuration.
     config:
       # Sample log (optional)
       sample: |
         2024-06-19 16:35:00 INFO test log
         line-1
         line-2
         end
       # Define input plug-ins.
       inputs:
             # Use the service_docker_stdout plug-in to collect text logs inside the container.
         - Type: service_docker_stdout
           Stdout: true
           Stderr: true
           # Configure container information filter conditions. Multiple options are in an "and" relationship.
           # Specify the namespace to which the pod containing the container to be collected belongs. Supports regular expression matching.
           K8sNamespaceRegex: "^(default)$"
           # Enable container metadata preview.
           CollectContainersFlag: true
           # Collect containers that meet the Pod label conditions. Multiple entries are in an "or" relationship.
           IncludeK8sLabel:
             app: ^(.*test.*)$
           # Configure multi-line chunk configuration. Invalid configuration for single-line log collection.
           # Configure the regular expression for the beginning of the line.
           BeginLineRegex: \d+-\d+-\d+.*
       # Define output plug-ins
       flushers:
         # Use the flusher_sls plug-in to send logs to the specified logstore.
         - Type: flusher_sls
           # Make sure that the logstore exists.
           Logstore: k8s-stdout
           # Make sure that the endpoint is valid.
           Endpoint: ap-southeast-1.log.aliyuncs.com
           Region: ap-southeast-1
           TelemetryType: logs

CRD-AliyunLogConfig

To create Logtail configurations, simply create the AliyunLogConfig custom resources, which will take effect automatically.

1. Log on to the ACK console.

2. On the Clusters page, find the cluster that you want to manage and click its name. In the left-side pane, choose Workloads > Custom Resources.

3. On the Custom Resources page, click the CRDs tab, then click Create from YAML.

4. Modify the parameters in the following YAML example as needed, copy and paste it into the template, then click Create.

   This YAML script will establish a Logtail configuration called simple-stdout-example. It will collect the standard output from all containers within the cluster that have names beginning with app, using multi-line mode. The collected data will then be transmitted to a logstore called k8s-stdout within a project named k8s-log-<YOUR_CLUSTER_ID>.

   For more information on the logtailConfig item in the YAML file, including supported inputs, outputs, processing plug-in types, and container filtering methods, see AliyunLogConfigDetail. For a comprehensive list of YAML parameters, see CR parameters.

   # Standard output configuration
   apiVersion: log.alibabacloud.com/v1alpha1
   kind: AliyunLogConfig
   metadata:
     # Specify the name of the resource. The name must be unique in the current Kubernetes cluster.
     name: simple-stdout-example
   spec:
     # Specify the target project name (optional, default is k8s-log-<your_cluster_id>)
     # project: k8s-log-test
     # Specify the name of the logstore. If the specified logstore does not exist, Simple Log Service automatically creates a Logstore.
     logstore: k8s-stdout
     # Specify the Logtail configuration.
     logtailConfig:
       # Specify the type of the data source. To collect standard output, set the value to plugin.
       inputType: plugin
       # Specify the name of the Logtail collection configuration. The name must be the same as the resource name that is specified in metadata.name.
       configName: simple-stdout-example
       inputDetail:
         plugin:
           inputs:
             - type: service_docker_stdout
               detail:
                 # Specify the collection of stdout and stderr.
                 Stdout: true
                 Stderr: true
                 # Specify the namespace to which the pod containing the container to be collected belongs. Supports regular expression matching.
                 K8sNamespaceRegex: "^(default)$"
                 # Specify the name of the container to be collected. Supports regular expression matching.
                 K8sContainerRegex: "^(app.*)$"
                 # Configure multi-line chunk configuration.
                 # Configure the regular expression for the beginning of the line.
                 BeginLineRegex: \d+-\d+-\d+.*


Simple Log Service console

1. Log on to the Simple Log Service Console.

2. Select your project from the list, such as k8s-log-<YOUR_CLUSTER_ID>. On the project page, click Logtail Configurations for the target logstore, click Add Logtail Configuration, and click Integrate Now under K8s - Stdout and Stderr - Old Version.

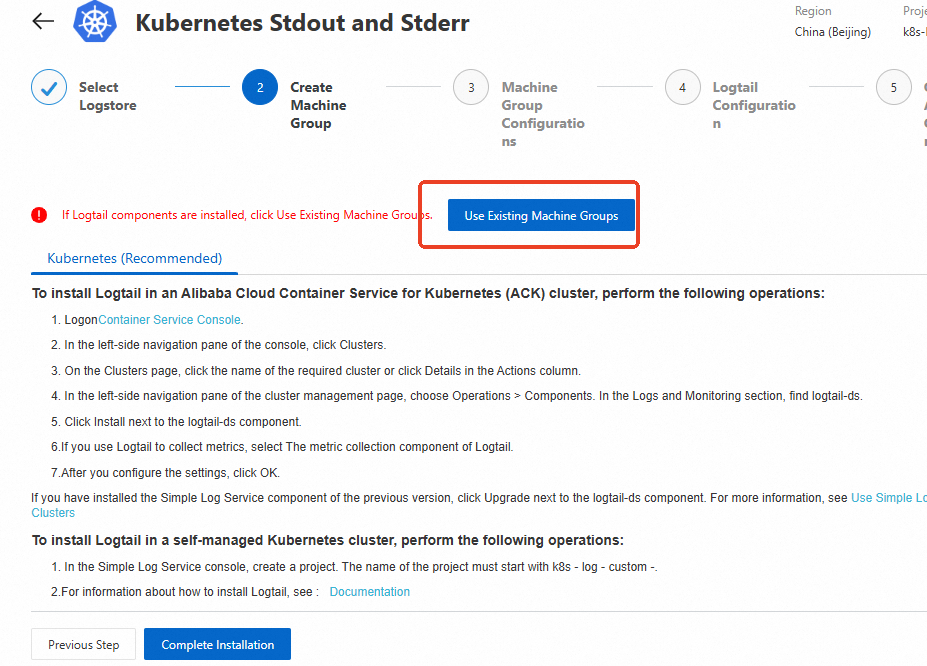

3. Since Logtail is already installed for the ACK cluster, select Use Existing Machine Groups.

4. On the Machine Group Configurations page, select the k8s-group-${your_k8s_cluster_id} machine group under the ACK Daemonset method in the Kubernetes Clusters scenario, add it to the applied machine group, then click Next.

5. Create a Logtail configuration, enter the required configurations as described below, and click Next. It will take about 1 minute for the configuration to take effect.

   This section covers only the necessary configurations. For a complete list, see Global Configurations.

   • Global Configuration

     Enter the configuration name in Global Configuration.



6. Create indexes and preview data: By default, Simple Log Service enables a full-text index, indexing all fields in the log for queries. You can also create a field index manually based on the collected logs, or click Automatic Index Generation. This will generate a field index for term queries on specific fields, reducing index costs and improving query efficiency.

Environment variables

1. Configure Simple Log Service when creating an application.

   Console

   1. Log on to the Container Service Management Console and click Clusters in the left-side navigation pane.

   2. On the Clusters page, click the target cluster, then select Workloads > Deployments from the left-side navigation pane.

   3. On the Deployments page, select a namespace and click Create from Image.

   4. On the Basic Information page, set the application name, then click Next to enter the Container page.

      This section introduces configurations related to Simple Log Service. For more information about other application configurations, see Create a stateless application by using a Deployment.

   5. In the Log section, configure log-related information.

      1. Set Collection Configuration.

         Click Collection Configuration to create a new collection configuration. Each configuration consists of two items:

         • Logstore: Specify the logstore where the collected logs are stored. If the logstore does not exist, ACK will automatically create it in the Simple Log Service project associated with your cluster.

           Note

           The default log retention period for newly created logstores is 90 days.

         • Log Path in Container: Specify stdout to collect standard output and error output from the container.



           Each collection configuration is automatically created as a logstore configuration, and logs are collected in simple mode (by row) by default.

      2. Set Custom Tag.

         Click Custom Tag to create a custom tag. Each tag is a key-value pair that will be appended to the collected logs. Use it to label the log data of the container, such as the version number.



   6. After configuring all settings, click Next. For subsequent steps, see Create a stateless application by using a Deployment.

   YAML template

   1. Log on to the Container Service Management Console or the , and select Clusters from the left-side navigation pane.

   2. On the Clusters page, click the target cluster name, and then select Workloads > Deployments from the left-side navigation pane.

   3. On the Deployments page, select a namespace and click Create from YAML.

   4. Configure the YAML file.

      The syntax of the YAML template is consistent with Kubernetes. To specify the collection configuration for the container, use env to add Collection Configuration and Custom Tag to the container, and create corresponding volumeMounts and volumes based on the collection configuration. Below is a simple pod example:

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        annotations:
          deployment.kubernetes.io/revision: '1'
        labels:
          app: deployment-stdout
          cluster_label: CLUSTER-LABEL-A
        name: deployment-stdout
        namespace: default
      spec:
        progressDeadlineSeconds: 600
        replicas: 1
        revisionHistoryLimit: 10
        selector:
          matchLabels:
            app: deployment-stdout
        strategy:
          rollingUpdate:
            maxSurge: 25%
            maxUnavailable: 25%
          type: RollingUpdate
        template:
          metadata:
            labels:
              app: deployment-stdout
              cluster_label: CLUSTER-LABEL-A
          spec:
            containers:
              - args:
                  - >-
                    while true; do date '+%Y-%m-%d %H:%M:%S'; echo 1; echo 2; echo 3;
                    echo 4; echo 5; echo 6; echo 7; echo 8; echo 9;
                    sleep 10; done
                command:
                  - /bin/sh
                  - '-c'
                  - '--'
                env:
                  - name: cluster_id
                    value: CLUSTER-A
                  - name: aliyun_logs_log-stdout
                    value: stdout
                image: 'mirrors-ssl.aliyuncs.com/busybox:latest'
                imagePullPolicy: IfNotPresent
                name: timestamp-test
                resources: {}
                terminationMessagePath: /dev/termination-log
                terminationMessagePolicy: File
            dnsPolicy: ClusterFirst
            restartPolicy: Always
            schedulerName: default-scheduler
            securityContext: {}
            terminationGracePeriodSeconds: 30

      1. Create your Collection Configuration and Custom Tag using environment variables. All related environment variables start with the prefix aliyun_logs_.

         • The rules for creating collection configurations are as follows:

           - name: aliyun_logs_log-varlog
             value: /var/log/*.log

           The example creates a collection configuration in the format aliyun_logs_{key}, where {key} is log-varlog.

           • aliyun_logs_log-varlog: This variable indicates the creation of a logstore named log-varlog. The log collection path is set to /var/log/*.log, and the corresponding Simple Log Service collection configuration name is also log-varlog. The goal is to collect the contents of the container's /var/log/*.log files into the log-varlog Logstore.

         • The rules for Creating Custom Tags are as follows:

           - name: aliyun_logs_mytag1_tags
             value: tag1=v1

           After a tag is configured, the corresponding field is automatically appended to the log data collected from the container. The mytag1 must be any name that does not contain '_'.

      2. If your collection configuration specifies a path other than stdout, you need to create the corresponding volumeMounts in this section.

         In the example, the collection configuration adds collection for /var/log/*.log, so the corresponding volumeMounts for /var/log is added.

   5. After completing the YAML, click Create to submit the configuration to the Kubernetes cluster for execution.

2. Configure advanced parameters for environment variables.

   Environment variables support various configuration parameters for log collection. Set advanced parameters as needed.

   Important

   Configuring log collection through environment variables is not suitable for edge computing scenarios.

   Field	Description	Example	Notes
   aliyun_logs_{key}	Required. {key} can contain only lowercase letters, digits, and hyphens (-). If aliyun_logs_{key}_logstore does not exist, a logstore named {key} is created by default. If the value is stdout, it indicates the collection of the container's standard output. Other values indicate the log path inside the container.	- name: aliyun_logs_catalina value: stdout - name: aliyun_logs_access-log value: /var/log/nginx/access.log	The default collection mode is simple mode. To parse log content, use the Simple Log Service Console and refer to Collect text logs from Kubernetes containers in DaemonSet mode or Collect stdout and stderr from Kubernetes containers in DaemonSet mode (old version) for configuration. {key} specifies the name of the Logtail configuration in Simple Log Service. The configuration name must be unique in the Kubernetes cluster.
   aliyun_logs_{key}_tags	Optional. The value must be in the format {tag-key}={tag-value} and is used to tag the logs.	- name: aliyun_logs_catalina_tags value: app=catalina	None.
   aliyun_logs_{key}_project	Optional. The value specifies a project in Simple Log Service. If this environment variable does not exist, the project you selected during installation is used.	- name: aliyun_logs_catalina_project value: my-k8s-project	The project must be deployed in the same region as Logtail.
   aliyun_logs_{key}_logstore	Optional. The value specifies a Logstore in Simple Log Service. If this environment variable does not exist, the Logstore is the same as {key}.	- name: aliyun_logs_catalina_logstore value: my-logstore	None.
   aliyun_logs_{key}_shard	Optional. The value specifies the number of shards when creating a logstore. Valid values: 1 to 10. If this environment variable does not exist, the value is 2. Note If the logstore already exists, this parameter does not take effect.	- name: aliyun_logs_catalina_shard value: '4'	None.
   aliyun_logs_{key}_ttl	Optional. The value specifies the log retention period. Valid values: 1 to 3650. If the value is 3650, the log retention period is set to permanent. If this environment variable does not exist, the default log retention period is 90 days. Note If the logstore already exists, this parameter does not take effect.	- name: aliyun_logs_catalina_ttl value: '3650'	None.
   aliyun_logs_{key}_machinegroup	Optional. The value specifies the machine group of the application. If this environment variable does not exist, the default machine group where Logtail is installed is used. For detailed usage of this parameter, see Collect container logs from ACK clusters.	- name: aliyun_logs_catalina_machinegroup value: my-machine-group	None.
   aliyun_logs_{key}_logstoremode	Optional. The value specifies the logstore type. Default value: standard. Valid values: Note If the logstore already exists, this parameter does not take effect. standard: Supports one-stop data analysis features of Simple Log Service. Suitable for real-time monitoring, interactive analysis, and building complete observability systems. query: Supports high-performance queries. The index traffic cost is about half of standard, but does not support SQL analysis. Suitable for scenarios with large data volumes, long storage periods (weekly or monthly), and no log analysis.	- name: aliyun_logs_catalina_logstoremode value: standard - name: aliyun_logs_catalina_logstoremode value: query	This parameter requires the logtail-ds image version to be >=1.3.1.

   • Customization requirement 1: Collect data from multiple applications into the same logstore

     To collect data from multiple applications into the same Logstore, set the aliyun_logs_{key}_logstore parameter. For example, the following configuration collects stdout from two applications into stdout-logstore.

     In the example, the {key} for Application 1 is app1-stdout, while for Application 2 it is {key} app2-stdout.

     The environment variables for Application 1 are as follows:

     # Configure environment variables
         - name: aliyun_logs_app1-stdout
           value: stdout
         - name: aliyun_logs_app1-stdout_logstore
           value: stdout-logstore

     The environment variables for Application 2 are as follows:

     # Configure environment variables
         - name: aliyun_logs_app2-stdout
           value: stdout
         - name: aliyun_logs_app2-stdout_logstore
           value: stdout-logstore

   • Customization requirement 2: Collect data from different applications into different projects

     To collect data from different applications into multiple projects, follow these steps:

     1. Create a machine group in each project with a custom ID named k8s-group-{cluster-id}, where {cluster-id} is your cluster ID. The machine group name is customizable.

     2. Configure the project, logstore, and machine group information in the environment variables for each application. Use the same machine group name as created in the previous step.

        In the following example, the {key} for Application 1 is app1-stdout, and the {key} for Application 2 is app2-stdout. If both applications are deployed within the same K8s cluster, you can utilize the same machine group for them.

        The environment variables for Application 1 are as follows:

        # Configure environment variables
            - name: aliyun_logs_app1-stdout
              value: stdout
            - name: aliyun_logs_app1-stdout_project
              value: app1-project
            - name: aliyun_logs_app1-stdout_logstore
              value: app1-logstore
            - name: aliyun_logs_app1-stdout_machinegroup
              value: app1-machine-group

        The environment variables for Application 2 are as follows:

        # Application 2 Configure environment variables
            - name: aliyun_logs_app2-stdout
              value: stdout
            - name: aliyun_logs_app2-stdout_project
              value: app2-project
            - name: aliyun_logs_app2-stdout_logstore
              value: app2-logstore
            - name: aliyun_logs_app2-stdout_machinegroup
              value: app1-machine-group
